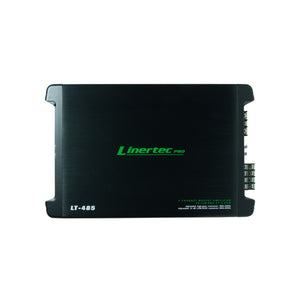

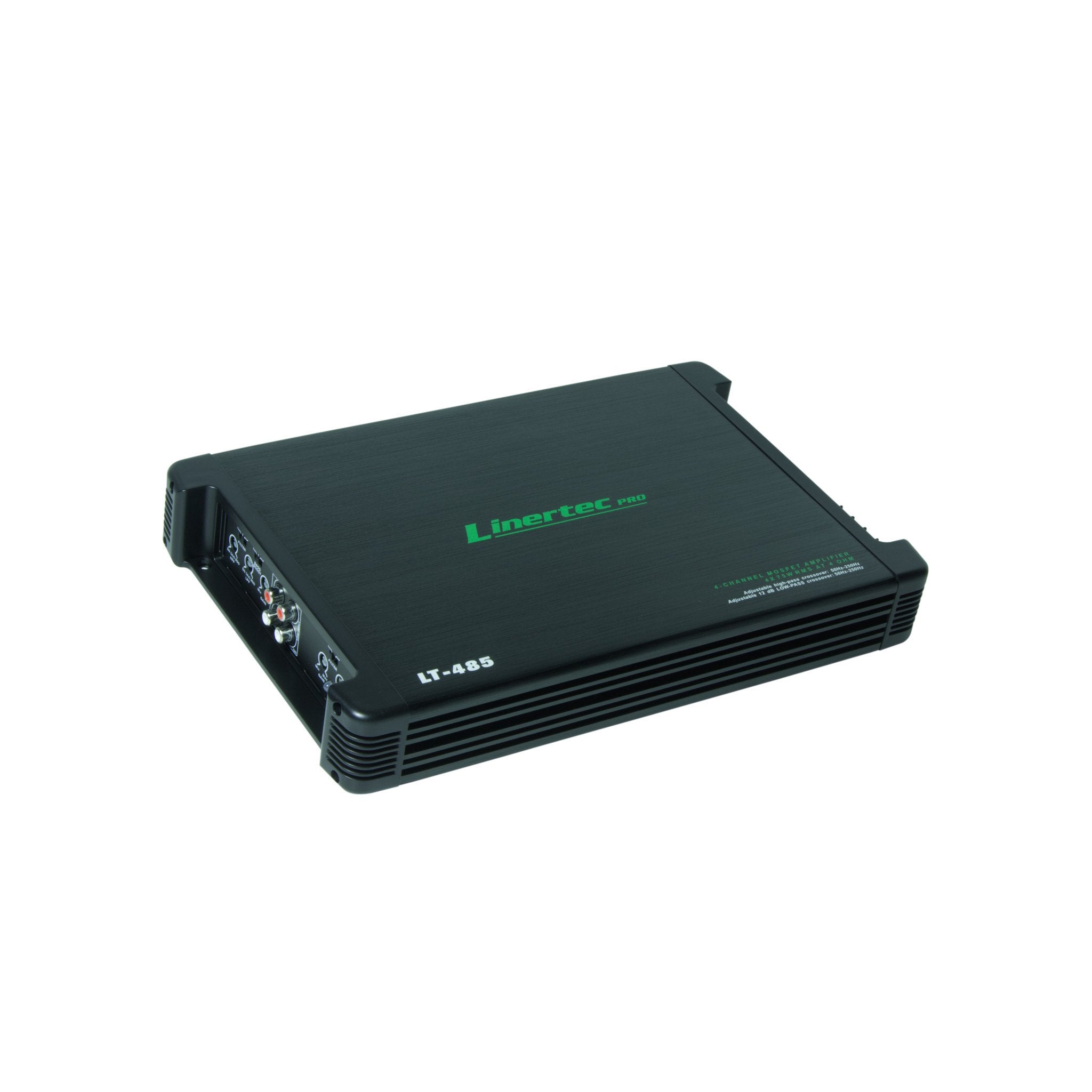

LT-485 4-Channel Amplifier
LT-485 4-Channel Amplifier
LT-485 4-Channel Amplifier
LT-485 4-Channel Amplifier

LT-485 4-Channel Amplifier

R 1,999.00
Tax included. Shipping calculated at checkout.

Features

  • 4 Channel car audio power amplifier
  • 2 Ohm stable in stereo mode
  • Bass boost control
  • Gain control
  • High/Low pass frequency control
  • Mosfet power supply
  • Low level input
  • Filter selection switch
  • Thermal protection
  • Remote on/off circuit
  • LED protection indicator
  • LED power indicator

Technical Specification

Parameter Specification
Amplifier Class AB Class
Supply Voltage 11~15V DC
MAX Output Power 450W
Power Output @ 4 Ohm 75W x 4 Channel
Power Output @ 2 Ohm 110W x 4 Channel
Bridge Output @ 4 Ohm 180W x 2 Channel
Frequency Response (±3dB) 20Hz~36kHz
Signal to Noise Ratio 90dB
Input Impedance 22K Ohms
Input Sensitivity 200mV~2V
Gain Adjustment MIN/MAX
Total Harmonic Distortion <0.05%
RCA Input 4 Channel
High Pass Frequency 50Hz~250Hz
Low Pass Frequency 50Hz~250Hz
Bass Boost 0/6/12dB
Recommended Fuse Type 15A x 2
Weight 2.50kg
Dimensions (LxWxH) T.B.A
